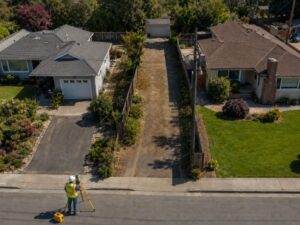

Property Line Survey Before Building a Shared Access Drive

Posted on July 30,2026 by Madison Surveyor

Two neighbors sharing one driveway sounds simple. Until the shovels come out. A property line survey is the first step that keeps that plan from turning into a fight. It shows where each lot ends. It shows where the pavement can go. It shows how close the drive can sit to a garage, fence, or utility pole. Skip this step and you might pour concrete in the wrong spot. Do it first and everyone building, planning, or approving the project works from the same facts. This guide walks through what a survey should show for a shared driveway. It covers the layout itself, all the way to the papers a permit office will want to see.

Mapping the Proposed Shared Driveway Alignment Across Both Lots

Before anyone breaks ground, the surveyor needs to draw the driveway’s centerline across both properties. That line is the backbone of the whole layout. Once it’s set, the surveyor measures the pavement edges on each side. This shows how wide the drive will actually be once it’s built.

The survey also needs to show how the drive meets the street. This part matters more than people think. A driveway that lines up badly with the road can block a driver’s view. It can also force an odd curve near the entrance.

Nearby buildings matter too. The survey should show how close the drive sits to each house, garage, or shed. That distance often decides if the layout will even work. Many local rules set a minimum gap between a driveway and any building.

Measuring Narrow Points That Could Limit Driveway Width

Every lot has tight spots. Maybe a garage corner sticks out. Maybe a wall cuts into the planned path. A good survey finds these tight spots before work begins, not during it.

Surveyors measure the space at each tight area. This includes spots near garages, along retaining walls, past bushes or trees, and around utility poles or building corners. These numbers tell the designer if the driveway can stay the same width from the street all the way to the back of the lot. Or if it has to get narrow somewhere along the way.

This step saves money too. Nobody wants to find out halfway through the project that the drive has to shrink from twelve feet to nine feet. That happens when a pole sits closer to the property line than anyone thought.

Recording Ground Elevations Along the Access Route

Water always runs to the lowest point. That’s why height measurements matter so much for a shared driveway. The survey should record height points all along the planned route. This shows where the ground goes up, dips down, or stays flat.

These numbers help with two things: drainage and paving. A designer uses them to plan which way the water should flow. This keeps rain from pooling near a garage door or running onto a neighbor’s yard. Height changes also affect how the ground gets prepared under the pavement. Steep spots need different work than flat ones.

This is not the same as a general flood report or an elevation certificate. It’s data made just for this project, taken only where the driveway will sit. It’s meant for the designer to use, not for insurance papers.

Establishing Survey Control for Driveway Construction Layout

Once the design gets approved, workers need fixed points they can trust during construction. That’s what survey control gives them. These are marked points that show exact position and height along the driveway route.

For a shared driveway, these points need to cover the full length of the drive. They should run across both lots, not just one side. Crews use these points to check height as they dig, pour, and pave. This makes sure the finished drive matches the approved plan instead of sloping off in the wrong direction.

This work is smaller in scope than general construction staking. It has one job: keeping the shared drive straight and level from the street to the back of both lots.

Preparing a Shared-Drive Survey Exhibit for Design and Permitting

All this information needs to live in one place. A place both owners, the designer, the builder, and the permit office can see clearly. That’s the job of a shared-drive survey exhibit.

This drawing brings together the planned driveway path, the measured widths at each point, nearby features like garages or walls, the height data, and the survey control points. Instead of four people working off four different sketches, everyone looks at the same paper.

That matters more than it sounds like it should. Design changes move faster this way. Permit questions get answered faster too. Construction problems get fixed faster when there’s one drawing everyone trusts, instead of different numbers from different sources.

Frequently ask Questions

Can a surveyor mark both edges of a proposed shared driveway?

Yes, in most cases. The surveyor usually needs an approved design or clear measurements from the project designer first. Then both pavement edges can be laid out correctly.

Does a shared-drive survey automatically include elevations?

Not always. A basic property line survey often skips detailed height information. Elevation measurements usually need to be asked for as part of the job.

What plans should be given to the surveyor before fieldwork?

The planned driveway width, path, pavement edges, street connection point, and any design heights. Sharing these ahead of time helps the surveyor prepare correct layout information from the start.

Can the driveway be staked before construction begins?

Yes. Stakes or marked points can guide digging, grading, base work, and paving. But this only happens once the final layout gets approved by both owners and the designer.

Should both property owners receive the same survey exhibit?

It’s a smart move. One shared drawing cuts down on mixed-up measurements. It also keeps both owners, the builder, and the permit office working from the same plan.
