When a road widens or a new development goes in, some of those utilities have to move. Before any of that happens, a professional land surveyor takes a close look at where everything sits today. That review shapes the whole relocation plan, long before a construction survey crew ever shows up on site.
Public utility relocation sounds simple until you picture what’s really down there. Water mains, gas lines, storm drains and buried cable often sit close together in tight spaces. Move one line wrong, and you can clip another. A solid survey review helps everyone see the real picture before the team locks in the plan.

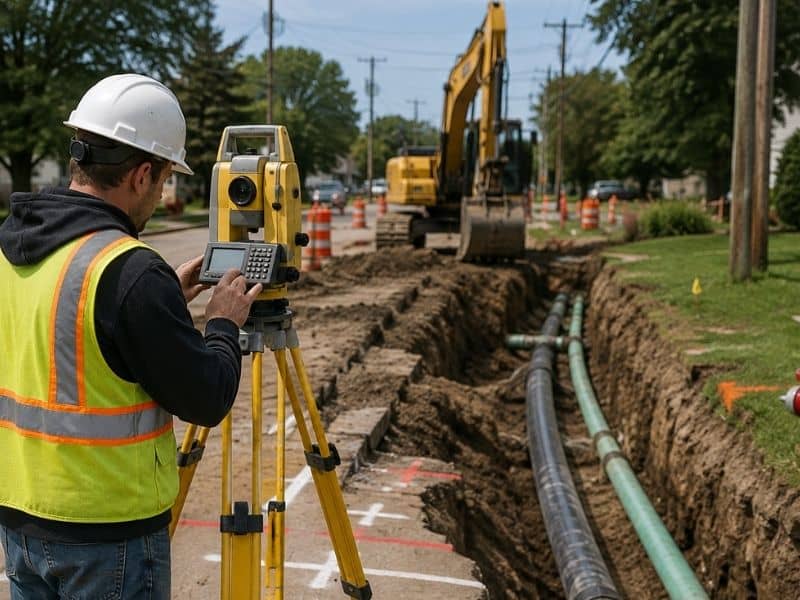

How a Professional Land Surveyor Reviews Existing Utility Locations
The first job is figuring out where the current utilities actually sit. A professional land surveyor pulls together mapped records, utility markouts and visible clues on the ground like manhole covers, valve boxes, meters and pedestals. Then they tie all of it to real positions on the site. This gives the project team a clear view of how the utility features line up with the work area.
Records alone rarely tell the full story. Old maps go out of date, and field crews sometimes install lines a little off from the plan. So the surveyor compares what the paperwork claims against what shows up on the surface. When something doesn’t match, the surveyor flags that gap early instead of letting it turn into a surprise later.
Utility Relocation Planning Around Existing Site Features
Utilities never move in a vacuum. Roads, driveways, drainage ditches, buildings and parking areas all shape where a relocated line can realistically go. A surveyor maps these features so planners can see what stays fixed and what has some wiggle room.
Say a storm drain runs along the edge of a road that can’t shift. That single feature might push a relocated water line toward a narrow strip near a sidewalk. Meanwhile, an access road that trucks use every day limits how the crew reaches the area. When the survey shows all of this at once, the team plans around it instead of guessing. The goal is a route that respects what the site already has, so the relocation doesn’t create new headaches down the line.
Checking Utility Corridor Space Before Relocation Work
Every relocated utility needs a path to follow, and that path has limits. A professional land surveyor measures the open space along a proposed corridor and checks whether the new line can fit without bumping into what’s already there. Tight corridors are where most conflicts hide.
Common trouble spots include:
- Areas where several existing lines cross the same narrow strip
- Grade changes that leave less room than the plan assumes
- Fixed structures like footings or headwalls sitting in the path
Once the surveyor spots these, the team can adjust the route before work begins. A small change on the plan is quick and cheap. Catching a pinch point on paper costs a lot less than finding it with a backhoe.
Survey Review for Utility Relocation Design Decisions
Design decisions get much easier when everyone works from the same survey information. Engineers use it to set routes and slopes. Utility companies use it to plan connection points. Project planners lean on it to spot site limits before they commit to anything.
Without shared data, teams make choices based on guesses, and guesses cost money when they turn out wrong. A clear survey review hands each group the same picture of the site. As a result, the team sorts out the route, the tie-in points and the trouble spots on paper first. Everyone leaves the review with fewer open questions. That saves time once field work starts and cuts down on expensive redesign.
Coordinating Field Measurements With Public Utility Relocation Plans
Plans age fast, and sites change. New curbs go in, grades shift and small features move over time. Because of that, current field measurements matter a lot when a team writes or updates relocation plans. Fresh numbers keep the plan tied to what’s really there today. The more current the data, the more the team can trust the plan.
When a surveyor lines up measurements with the relocation design, the two stay in step. The plan matches the actual site, and the site matches the plan. That kind of match lowers the odds of hitting an unexpected conflict once the utility work moves ahead. It also gives everyone confidence that the design rests on real ground, not a stale drawing.
Frequently Asked Questions
What does a professional land surveyor do during utility relocation planning?
They locate and map the existing utilities and nearby site features, then compare the records against real ground conditions. This gives engineers and utility companies an accurate starting point for new routes. Their review also helps the team catch problems before anyone finalizes the relocation design.
Why is field information important before relocating a public utility?
Field information shows what the site looks like right now, not back when someone first drew the plan. Roads, grades and nearby lines all change over the years. Current measurements keep the relocation plan accurate and lower the chance of a surprise once crews start digging.
Can a professional land surveyor identify potential conflicts along a proposed utility route?
Yes. By measuring corridor space and mapping existing features, a surveyor can flag spots where a new line might cross another utility or hit a fixed structure. Catching these pinch points early lets the team reroute on paper instead of fixing costly errors in the field.
When should survey review happen during utility relocation planning?
Survey review works best early, before the team locks in the design. With accurate site data from the start, planners can set routes and connection points with real confidence. Waiting until later usually means reworking a plan that already looked done.
How can survey information help utility relocation projects avoid site conflicts?
Good survey data gives engineers, utility companies and planners one shared view of the site. Everyone then plans around the same features and measurements. That agreement keeps routes realistic and cuts down on the surprises that pop up when different groups work from different assumptions.
