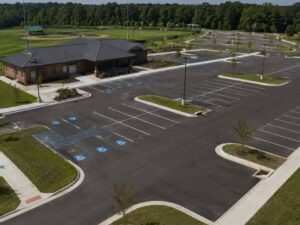

A recreation complex in Madison, Alabama finishes its parking lot. The contractor packs up. The striping crew leaves. What gets measured now sets the field record for years. An as-built survey shows the parking area the way it was actually built, not the way it looked on a plan sheet months earlier.

Recording the Parking Area That Was Actually Built

An as-built survey shows what a field crew finds on the ground once construction wraps up. For a parking area at a recreation complex, that means locating the finished layout: parking stalls, drive aisles, curb lines, accessible spaces, sidewalks, and other site features named in the project scope.

The crew walks the site with survey-grade equipment and picks up each edge, corner, and surface change. They locate curb returns, wheel stops, striping, drainage inlets, and ramps. Light poles, signs, and trees near the lot often get picked up too, since they can matter for later work.

The output is a drawing built from real coordinates tied to real features on the ground. Most survey crews use GPS receivers and a robotic total station together, switching between the two depending on how open or blocked the sky is above each part of the lot. Under a tree line or next to a tall building, the total station picks up the slack where satellite signal drops out.

For a facility used by families, teams, and event crowds all week in Madison, that drawing becomes the reference point for anyone who needs to know what actually sits where. It also becomes the base map of licensed surveyor stamps and signs, which gives the record legal weight beyond a simple field sketch.

Comparing Finished Pavement Layout With the Approved Site Plan

Once the field data is in hand, a surveyor can lay it next to the approved site plan. This side by side check shows where the built parking area lines up with the design and where it moved.

A curb might sit a foot off the plan line. A drive aisle might run a little wider or narrower than shown. An accessible stall might land in a slightly different spot than the drawing called for.

None of this means the work is bad. Field conditions shift during construction. A buried utility can push a curb line a few inches. A grading fix can move a stall. The survey does not judge these shifts. It simply records what is there.

For a property owner or the city of Madison, that comparison gives a plain answer to a simple question: what got built versus what got designed. That answer matters when a certificate of occupancy needs support, when a dispute comes up, or when the design team closes the project file.

Capturing the Connections That Serve Busy Recreation Facilities

A parking area does not stand alone. People move from their cars into the building, onto ball fields, or toward a playground. The survey should locate the points where that movement happens: entrances, sidewalks, marked crossings, drop-off areas, and access drives.

These are the features people use the most and wear down the fastest. Locating them now gives the facility a clear picture of how cars, walkers, and staff cross paths across the site.

A youth tournament brings buses, vans, and foot traffic all at once. A well-located connection between the lot and the front door helps a facility manager plan for that kind of crowd later. It also gives an engineer a real starting point if the city or a future tenant asks for changes to how traffic moves near the entrance.

Creating a Useful Record Before Site Documents Become Harder to Reconstruct

Pavement changes fast once a project wraps up. Patches cover old joints. Fresh striping covers old marks. Landscaping crews shift curb lines with new beds and edging. A later expansion might tie into the existing lot and blur the original edges.

Right after construction finishes is the easiest time to lock in what is actually there, while the layout still matches what the contractor built.

Waiting a year or two makes the same job harder. Field crews end up guessing at original edges buried under repairs. Old markings fade. The people who managed the project move on to other work, and site memory fades with them. A survey done soon after completion skips all of that guesswork. It locks in a measured record while the site still looks like what got built, not what got patched.

Giving Future Project Teams a Measured Starting Point

Recreation complexes get updated often. A city might add stalls, restripe for electric vehicle charging, or extend a sidewalk to a new field. Each of these projects needs a starting point grounded in real measurements, not an old drawing that no longer matches the site.

An as-built survey gives designers, contractors, and facility managers that starting point. A civil engineer working on an expansion can pull existing curb lines and grades straight from the survey instead of sending a crew back out to remeasure the whole lot. A facility manager filing a maintenance request can point to an exact location instead of a rough description. A property owner working through a sale or lease can hand over a record that matches the physical site, not just the plan set.

For a parking area serving a public recreation complex, that kind of record supports the next phase of work before anyone has to ask for it.

A signed as-built survey is worth keeping with the rest of the project file, alongside the building permit and the certificate of occupancy. Facility staff change over time. Digital files get lost between departments. A printed copy filed with the county, or stored with the city’s parks and recreation office, gives the next person who needs it a way to find it without starting a search from scratch.
